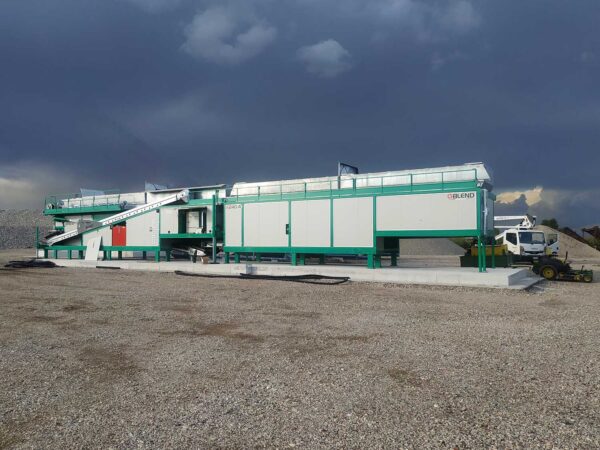

Hight output till 120 m3/h plant A240 BLEND

The Blend A240 is the versatile plant par excellence with high production capacity, ease of transport from one work site to another and with no additional mounting operations required. The plant has total hydraulic and electrical autonomy. Each type of aggregate is transferred from the hoppers to the main conveyor belt, to the twin shaft mixer, by means of variable speed extractor belts. Aggregate Dosing is by negative weighing. Dosing of cement and additives is also by negative weighing, to give greater accuracy and reliability and dosing of water, emulsion and other additives is electronically controlled by electronic flow meters connected the onboard PLC. GPS and remote control systems allow you to have complete management information regarding production and stock levels at all times.

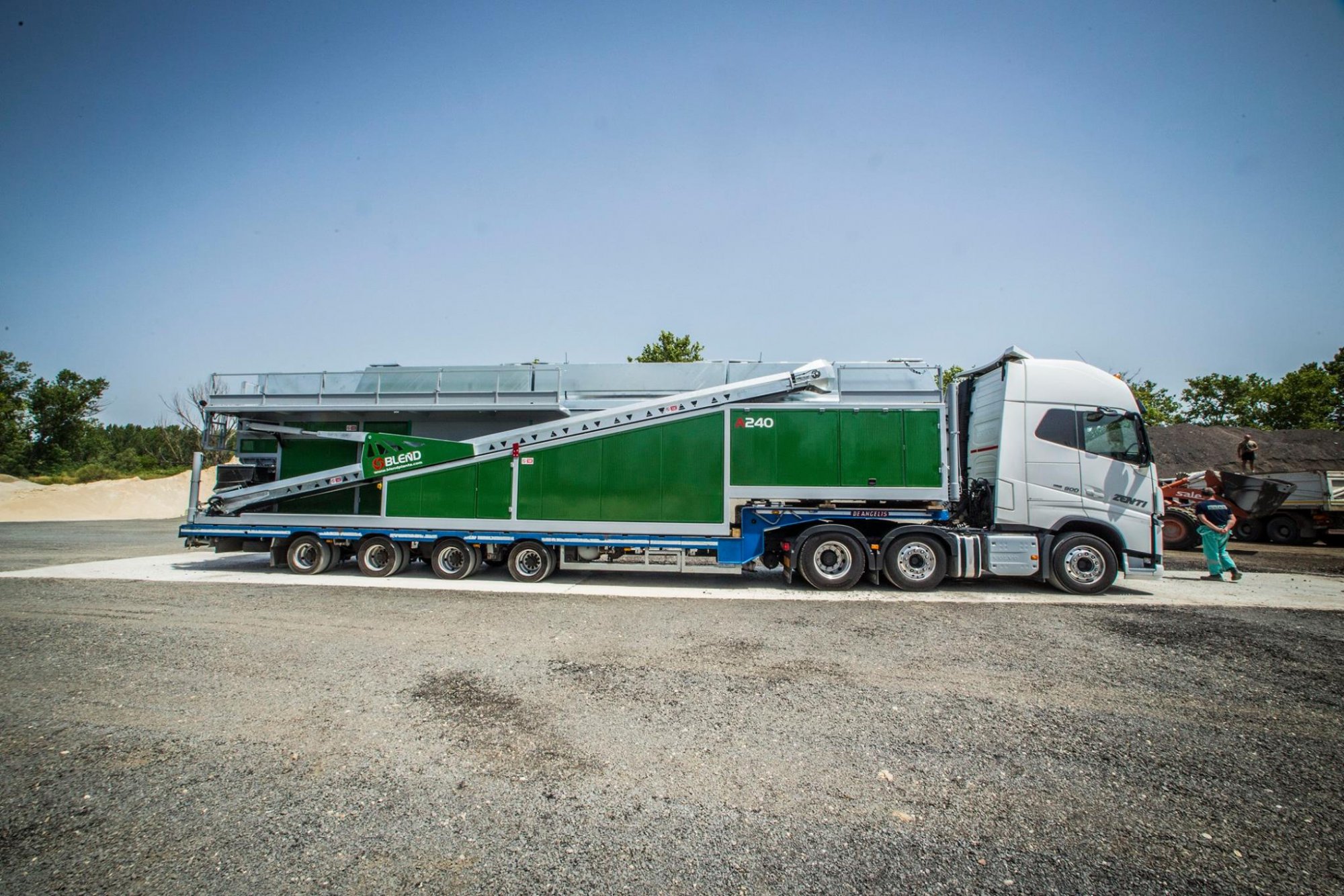

The A240 plant can be easily transported: weights and dimensions allow it to fit in on conventional transport vehicles (No exceptional transport required).

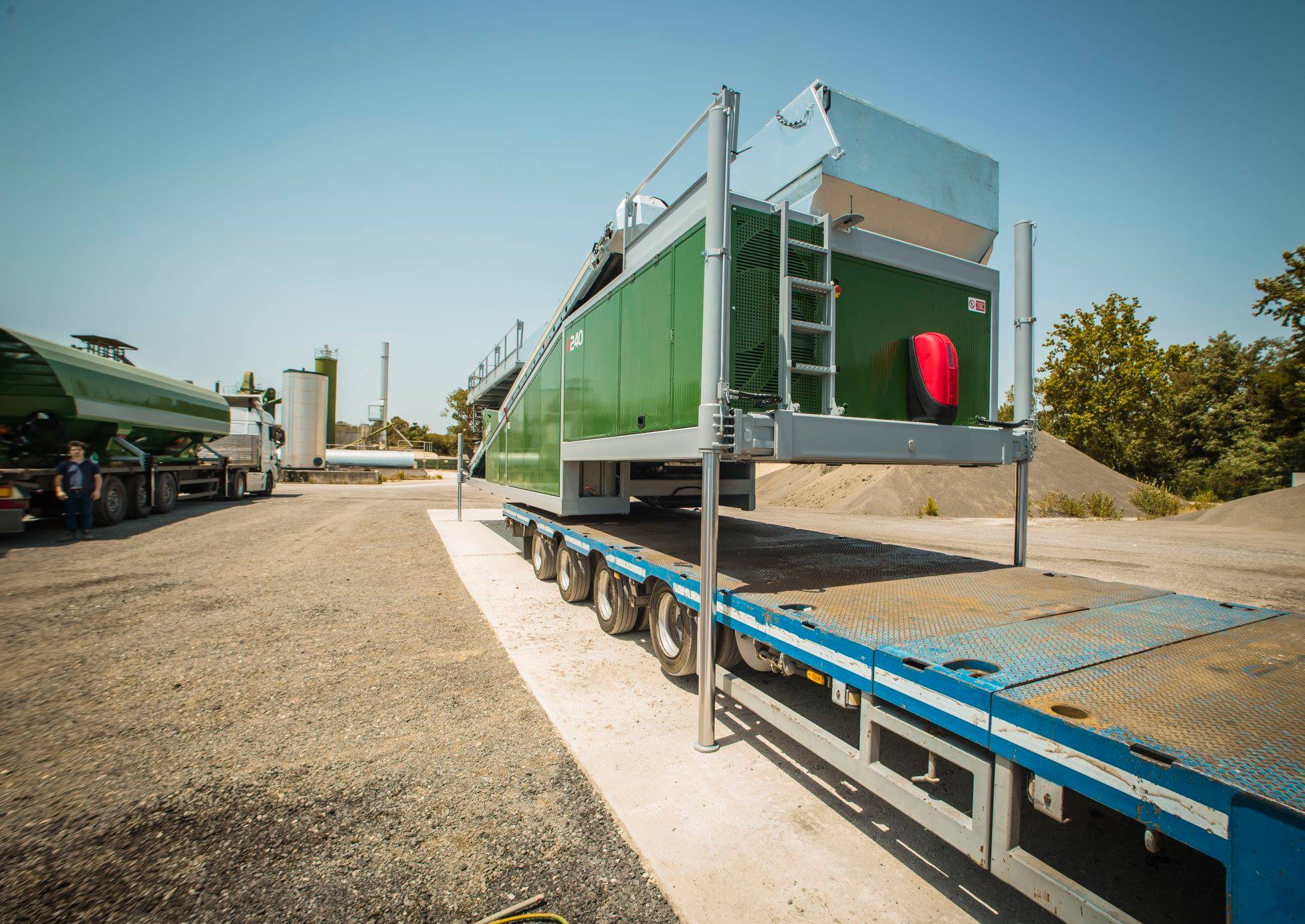

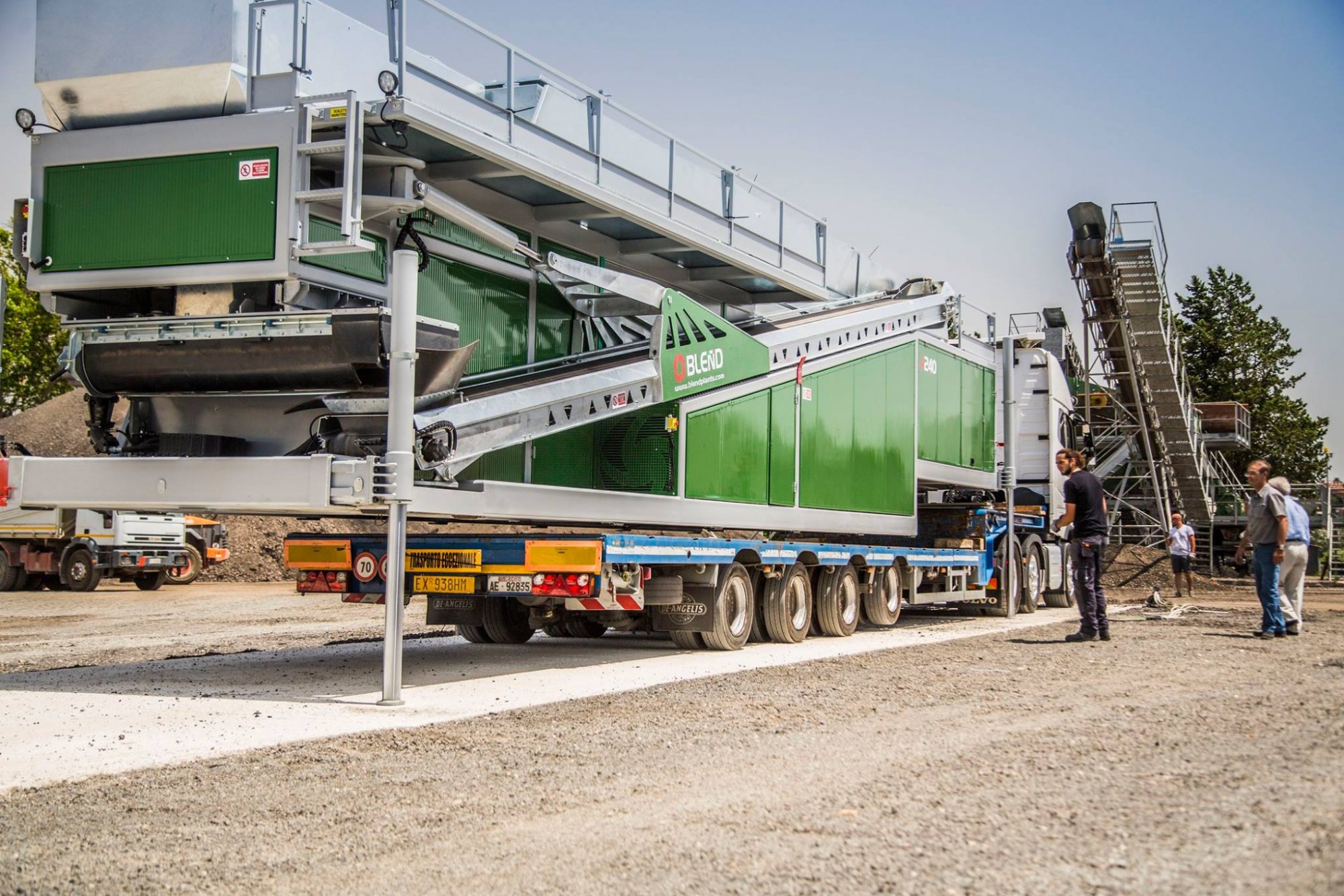

Self-loading, no crane is needed.

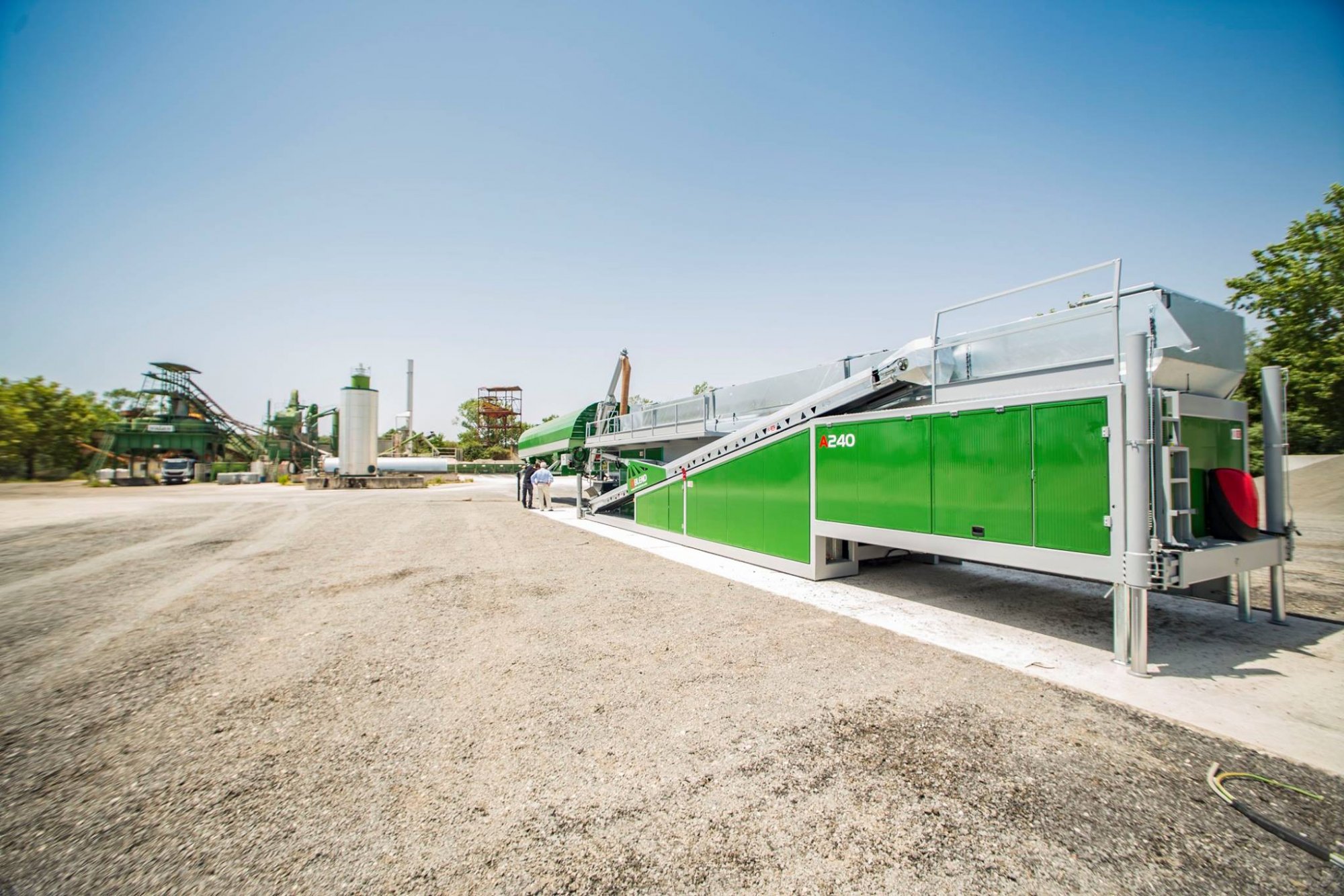

The positioning is quick: it can be done in an hour and it does not require special installations or concrete foundations.

CUSTOMIZABLE ACCORDING TO YOUR NEEDS!

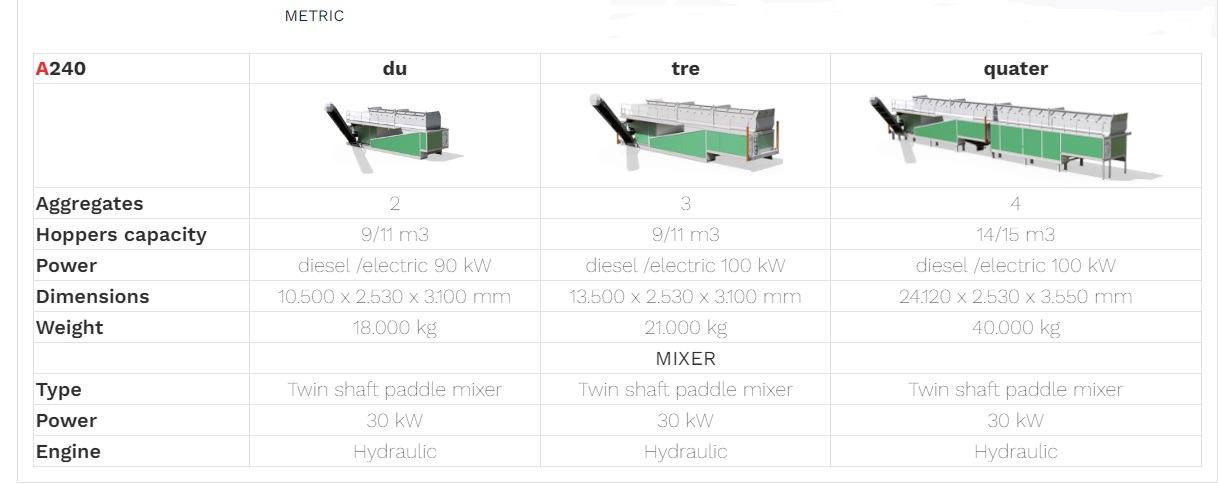

The design offers 2, 3 or 4 hoppers to satisfy different needs: from the quantity of storage to the type of aggregates.

The loading of materials requires neither ramps nor civil works.

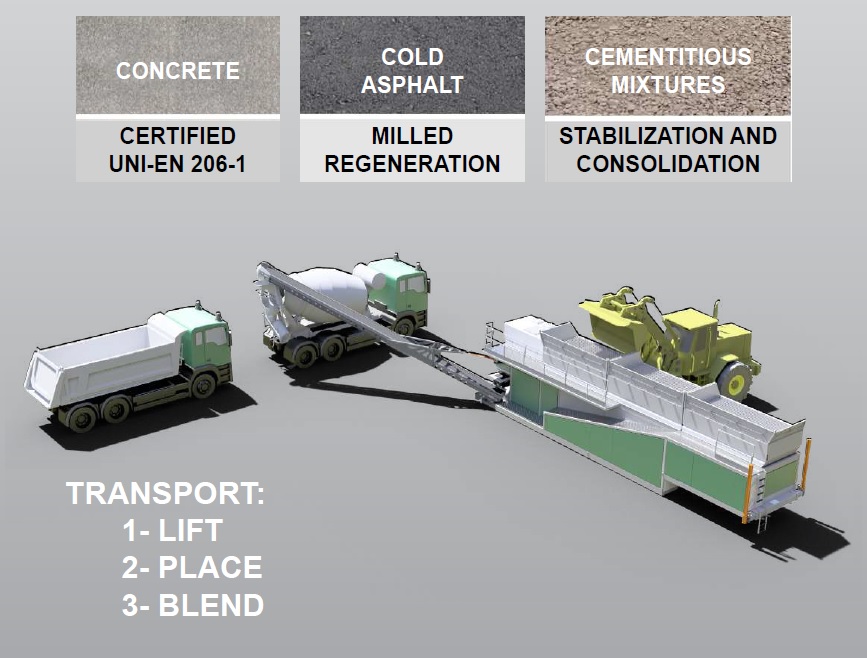

The material is loaded onto a tipper truck or a truck mixer by means of a height-adjustable conveyor belt.

AUTOMATION
Automated production.

Aggregates / cement weighing and consumption reading.

Remote control from the client’s head office and by Blend technicians, to guarantee immediate assistance.

 On-board computer for fully automated production with simple and intuitive software.

 The electronic control unit with military grade protection on Blend plants keeps the production and concrete flow under constant control by its sensors. Different types and qualities of recipes can be stored and selected. No manual operations are necessary.

 Weighing of aggregates/cements and reading of consumptions in Kg.

 Integrated printer with paper printout and digital report of different production lots. Humidity probe for automatic water adjustment in the recipe.

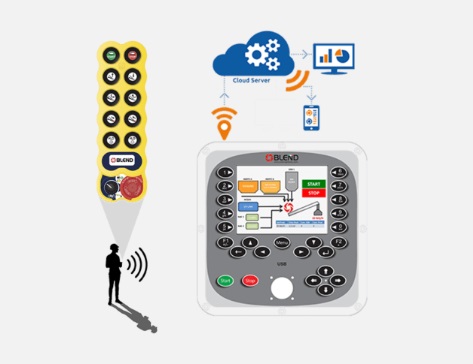

–Remote control for production management.

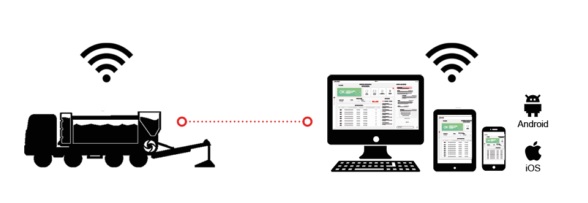

MyBlend is the system that allows you to remotely control your plant (from the office, the construction site or comfortably from your home) and receive remote assistance from Blend technicians.

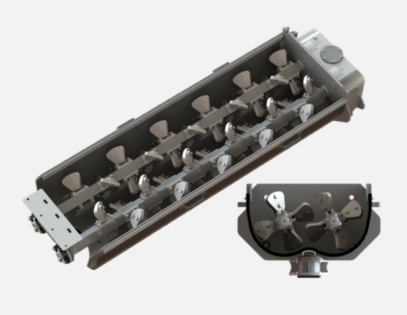

HIGH EFFICIENCY TWIN SHAFT PADDLE MIXER
 The continuous twin shaft mixer has been designed to be compact, easy to clean and maintain.

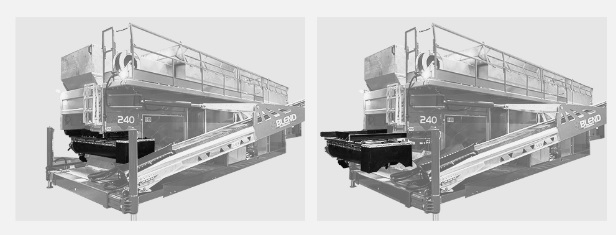

 It can be hydraulically extracted from the machine and comfortably positioned for cleaning & maintenance.

 The paddles are in Hardox and easy to replace.

 The production reaches up to 120 m3/h depending on the material recipe used.

HIGH QUALITY MIXING

A240 can easily adapt to all production needs
