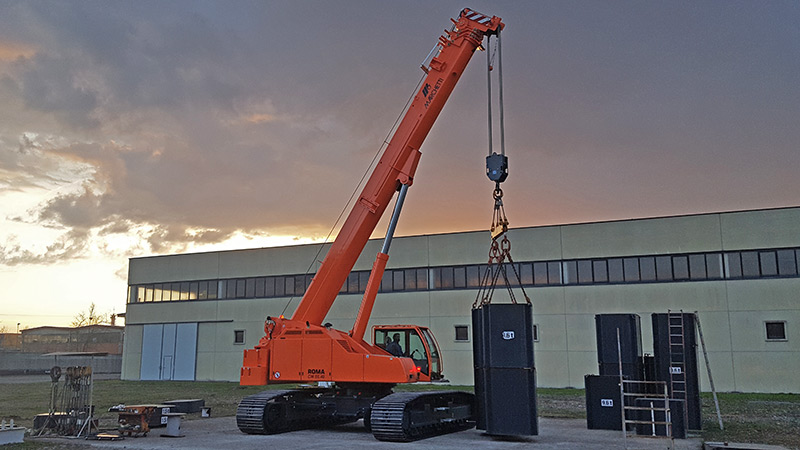

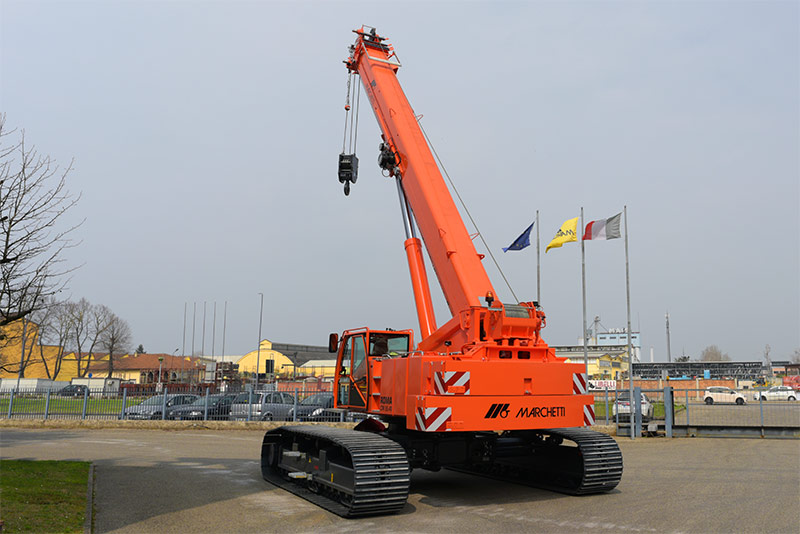

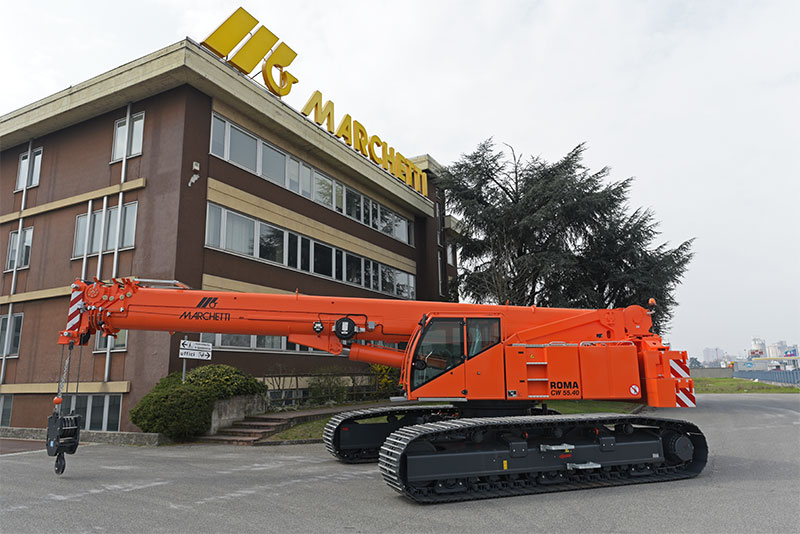

Crawler crane CW 55.40

Semi-round telescopic boom in made of Weldox (Strenx) steel in five sections of which four hydraulic extensions, first one is independent and the other three are synchronized. Total boom height from ground 42.5 m. Total height with lattice extension 57 m.

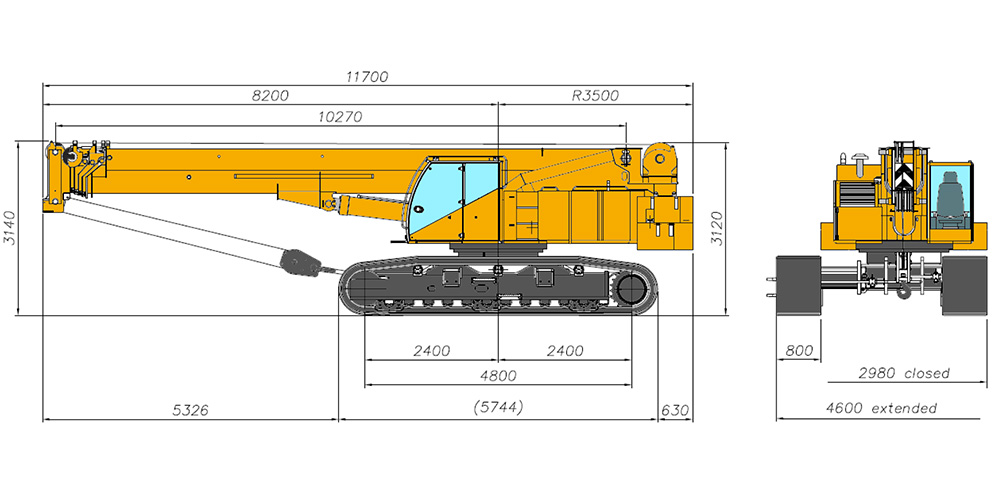

The crawler crane CW 55.40 is very compact and can be hauled with removing anything.

The crane is supplied with a hook block of 40 ton and a two pieces counterweight of 14,5 ton.

Motorization available:

129kW - EU 97/68 stage 5.
129kW - EU 97/68 stage 3a.

Optional equipment:

Auxiliary winch – folding lattice extension in two pcs 8m – 14,5m offset 0°-20°-40°, jib 1,3m – hook blocks of various capacities – rooster head for direct pull – working area limiter device – tilting cabin – air conditioning – radio control – other options on request.

The crane is compliant with the 2006/42 CE directive and is provided with CE marking.
