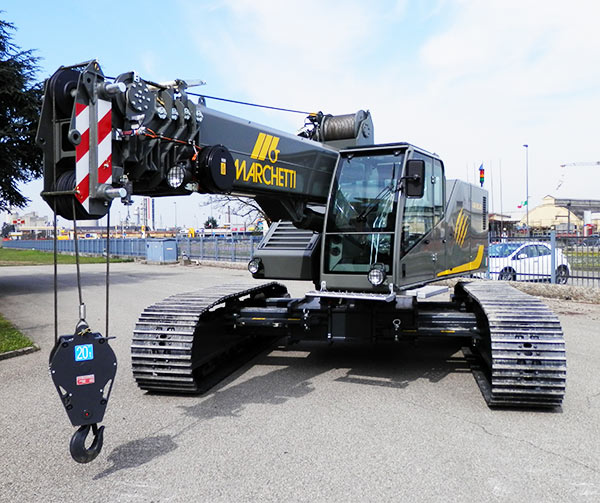

Crawler crane CW 25.35 Sherpina

Octagonal shape telescopic boom made of Weldox (Strenx) steel in five sections of which four hydraulic extensions, first one is independent and the other three are synchronized. Total boom height from ground 27m. Total height with telescopic extension (8,1m) 35 m.

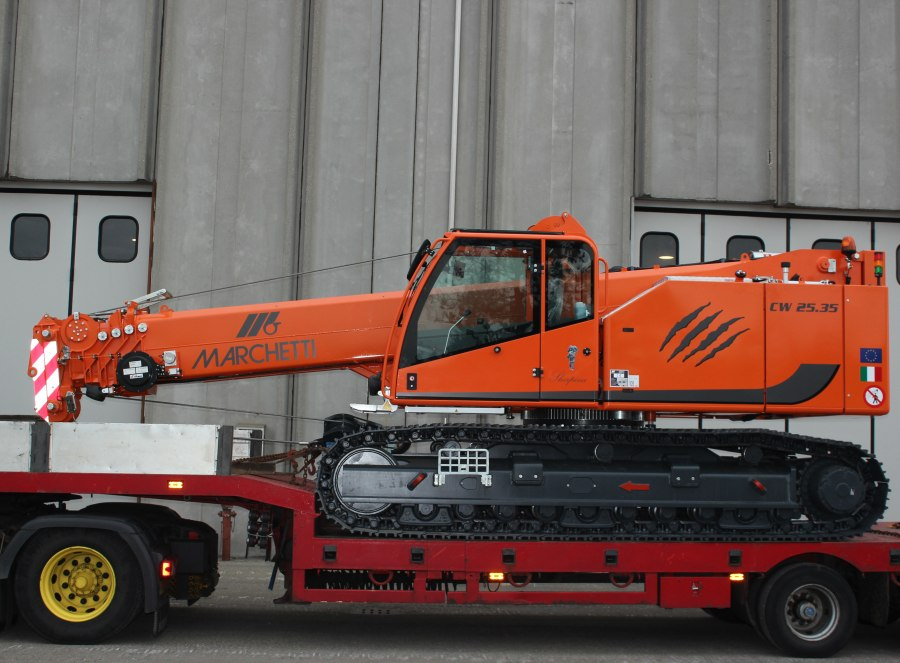

The Sherpina 25.35 is a very compact crane and can be hauled without removing anything.

Standard hook block is 20 ton.

Motorization available:

129kW - EU 97/68 stage 5.
129kW - EU 97/68 stage 3a.

Optional equipment:
Triple grouse shoes 700mm – folding telescopic extension 3,6/5,8/8,1m offset 0°/20°40°- aerial platform – air conditioning – slew restrictor and virtual wall limiter.

The crane is compliant with the 2006/42 CE directive and is provided with CE marking.
