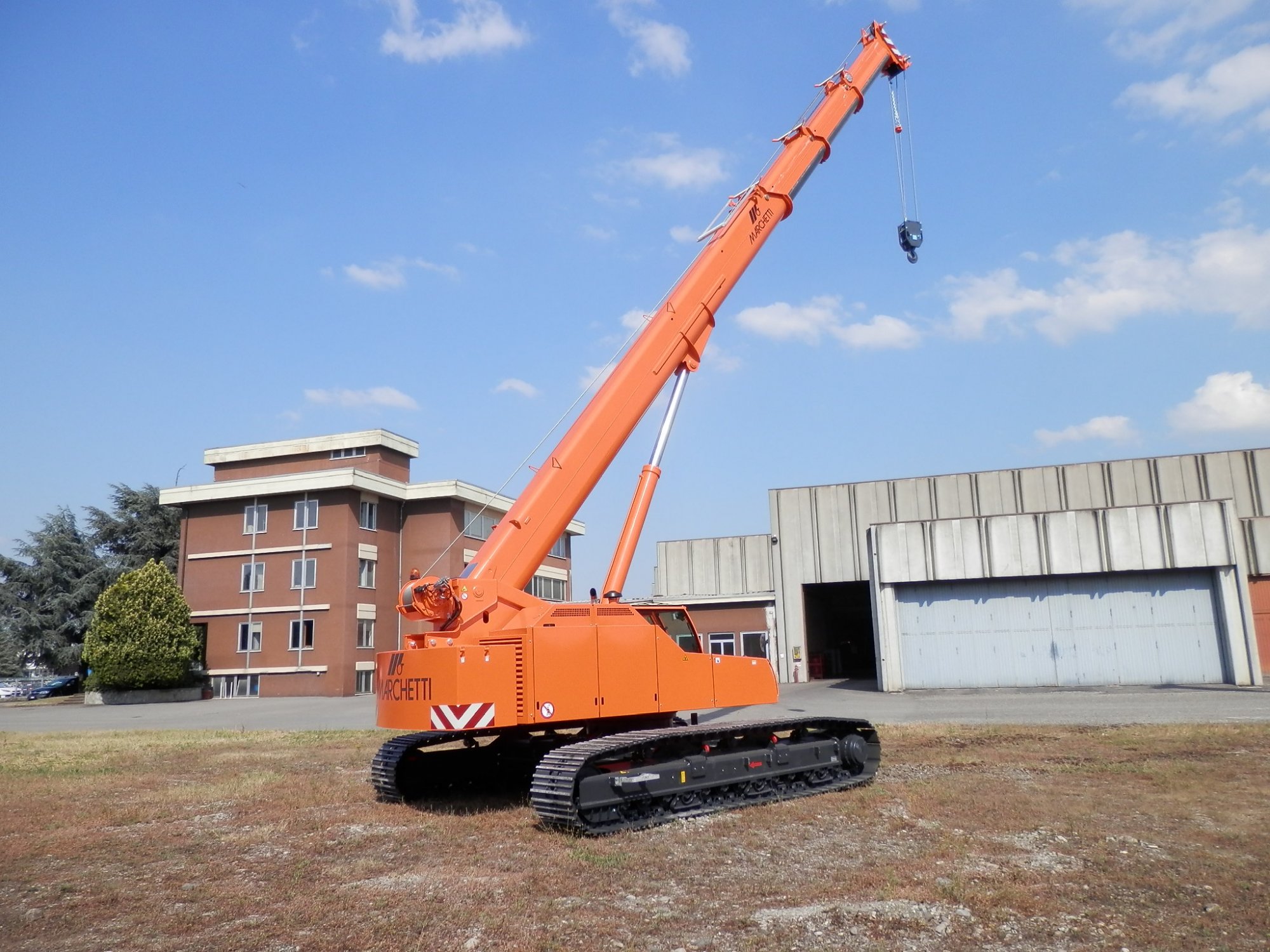

Crawler crane CW 45.32

Semi-round telescopic boom in made of Weldox (Strenx) steel in 4 sections of which 3 hydraulic extensions, first one is independent and the other 2 are synchronized. Total boom height from ground 34.5 m. Total height with lattice extension 49 m.

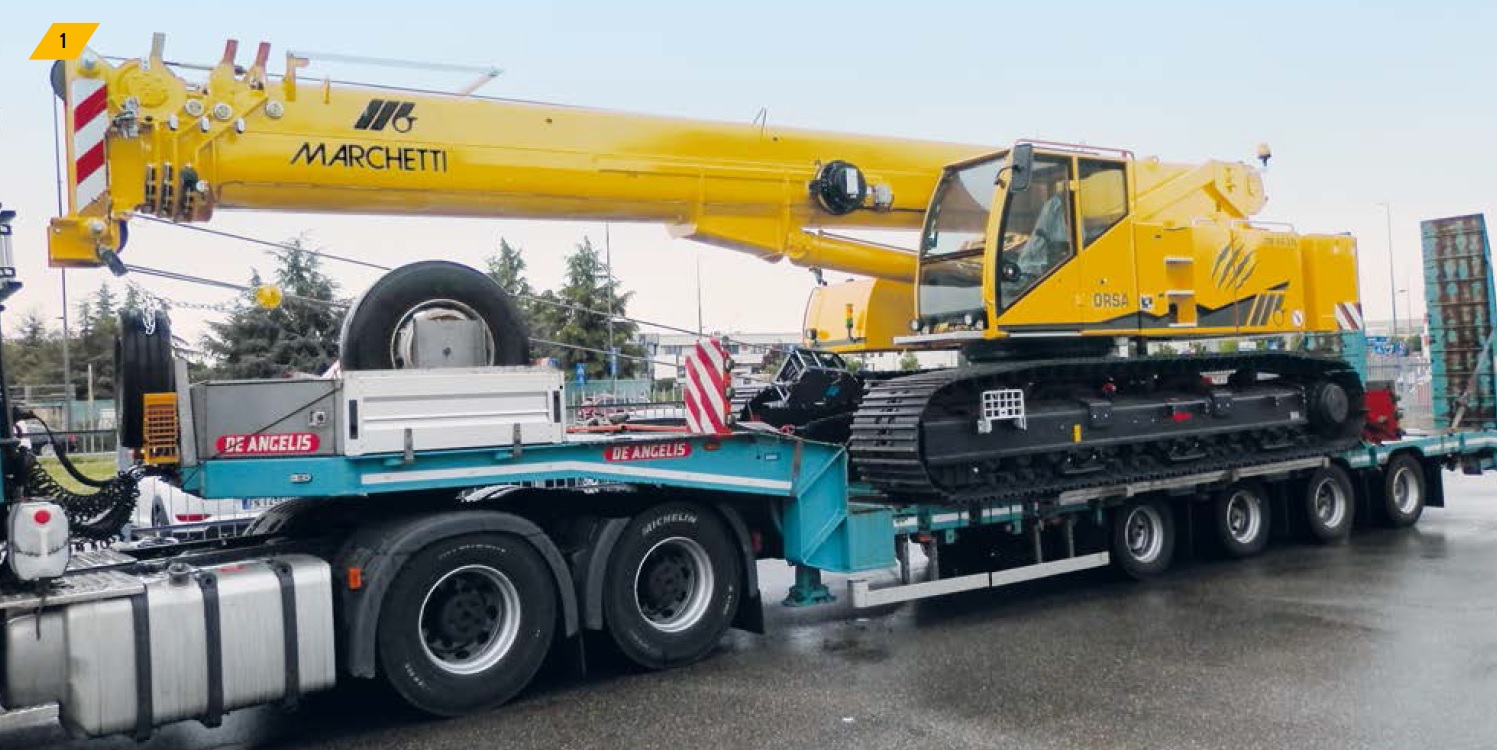

The crawler crane CW 45.32 is very compact and can be hauled with removing anything.

The crane is supplied with a hook block of 30 ton and a counterweight of 10 ton. pinned to the superstructure

Motorization available:

129kW - EU 97/68 stage 5.
129kW - EU 97/68 stage 3a.

Optional equipment:

Auxiliary winch – folding lattice extension in two pcs 8m – 14,5m offset 0°-20°-40° – hook blocks of various capacities – rooster head for direct pull – working area limiter device – tilting cabin – air conditioning – radio control – other options on request.

The crane is compliant with the 2006/42 CE directive and is provided with CE marking.
