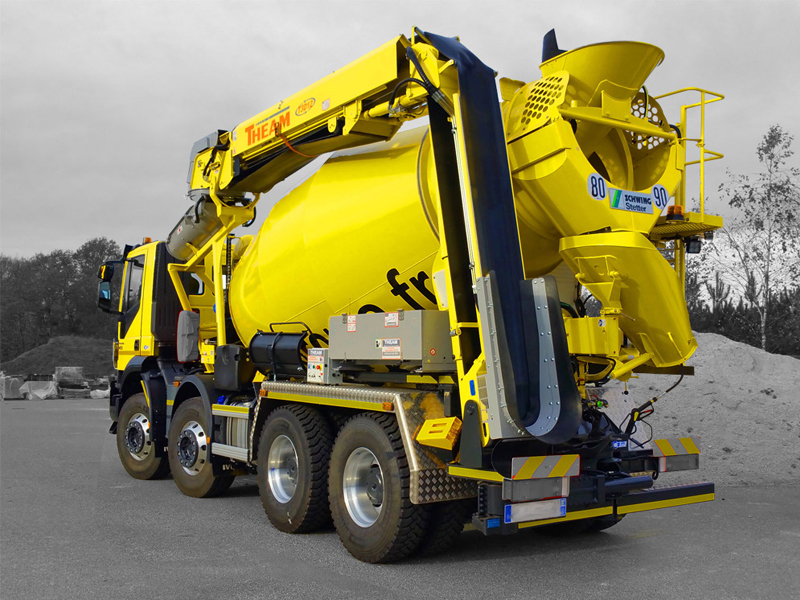

Concrete conveyor belt T3D12 Theam

Manufacturer: Theam (France)
Additional services:

Concrete conveyor belt T3D12 Theam - 12 meters steel

Conveyor (conveyor) belt for concrete T3D12 Theam - with a rotating trough, transporting concrete to a distance of 12 m - without dead zones!
In the second section is a telescopic conveyor 2.2 m long.
Many options - 3D cuff, gutter extension, chain protection, double rubber hopper.

Conveyor belt for concrete T3D12 - THEAM (France)

• Transportation distance: from 4.8 to 12.5 m
• Telescope - 2nd element: 2.2 m
• Tape width: 360 mm
• Productivity: 70 m3/h
• Rotation angle: 310°
• Max. discharge height 5.5 m
• Weight: 2040 kg
• Proportional hydraulics
• Steel construction
• Without stabilizers
Concrete conveyor belt T3D12 Theam
- Better Versatility
Patented radio-controlled movement system, 360° continuous rotation.
Telescopic second section 2.2 m long.
The 3D extension of the gutter is ideal for wall work.
Good visibility, the operator avoids unnecessary entries / exits from the cab.

- Quality of transportation and operation
Quick opening casing for cleaning.
It can transport any type of concrete or gravel.
Sliding system to prevent concrete segregation.
Quick installation, no stabilizer.
Operation with the remote control.

- Optional equipment:
Controlling the conveyor using a remote control.
Raise the conveyor UP/Down using the remote control.
Collapsible system (need stabilizers).
High voltage line detector.
High pressure washer.

Concrete conveyor belt T3D12 - no dead spots! Universal conveyor with 3D with gutter extension. As standard, there is a gutter extension, circuit protection, convenient and sensitive radio control.
