Railway access platforms RR 14/400

Working height: 14.4 m
Basket capacity: 400 Kg
Diesel engine + AC electric motor
Diesel engine + DC electric motor

Powerful and functional, both on road and rail (hybrid version available on request).

• Easily transportable to the work site
• Compact with high basket load capacity
• Self-levelling on railways, compensating for a cant of up to 200 mm
• Fast transfer speed of up to 19 km/h (up to 5 km/h with booms extended)
• Versatile and packed with accessories such as hydraulic generator, auxiliary engine, measurement pantograph, multiple gauges, remote diagnostics and geolocation.
• Easy access to tracks via four steering wheels with tyres.

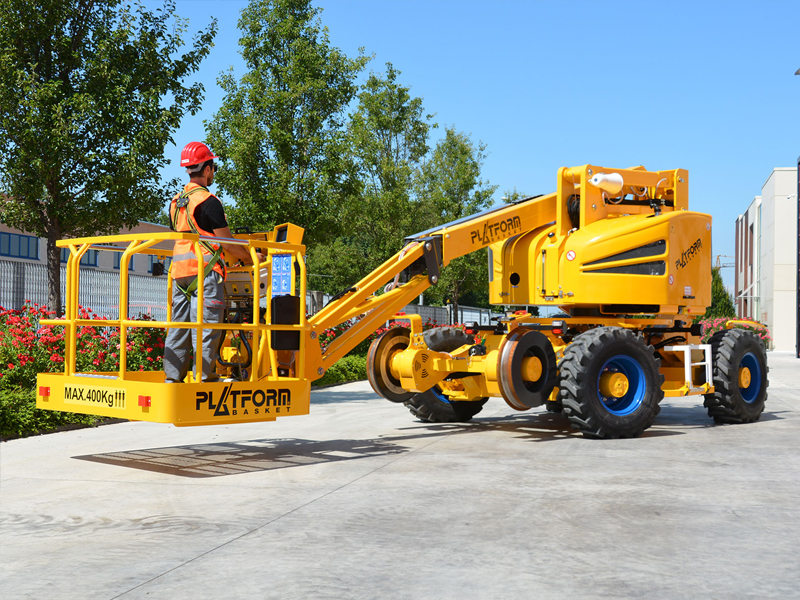

A light and versatile platform designed and manufactured to allow combined use both off-road and on railway tracks.

It features a self-levelling turret, a spacious basket for 3 people with 400kg load capacity, and independent drive on both tyres and rails.

The platform is particularly well suited for maintenance of railway infrastructure electrical lines.

Independent hydraulic drive system on road and rail in order to make use of the machine easier and more functional. Available with interchangeable railway axles with reduced gauge


The platform is now available with a 42 kW engine which complies with the stringent “EU Stage V” emissions standards via a DPF on the exhaust system.

Automatic levelling

Possibility to work on tracks with cant of up to 200 mm, with automatic levelling of the turret and all aerial parts in order to maintain a working position which is level at all times.

Driving camera

In order to improve driver visibility, it is possible to install an optional video camera and display to provide an improved view of the side opposite the aerial basket. This also facilitates alignment with the track when the platform enters the railway.

Large basket

with load capacity up to 400 kg (3 people + 160 kg of equipment). Basket rotation: 180°. Simple, easy-to-use control panel in an accessible position.

Rotation: +/- 180°
limited by mechanical pins and electric sensors, with display in the basket.

Equipotential shielding
All platforms are fitted with large-section copper cables in order to minimise the electrical resistance between the aerial basket and the railway wheels. Complies with railway regulations in all countries.

Driver seat
On request, a fold-down seat can be installed for the platform driver to make long transfers more comfortable.

The world we live in today demands spider lifts that can work in multiple conditions. This is why, to meet customers’ specific needs, we optimised a series of accessories. In addition, our technical department is available to study and develop other accessories and customised options according to the customer’s requirements and expectations.
