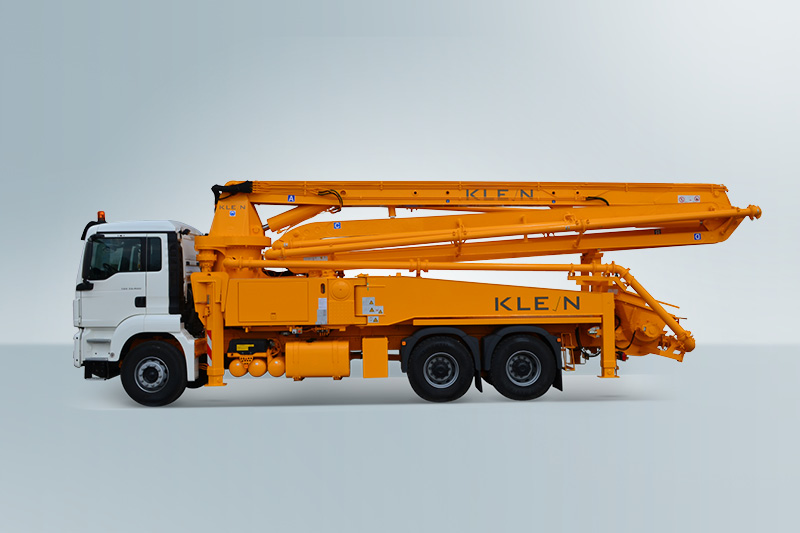

KBZ 39X-4 Truck-mounted concrete pump KLEIN

Efficient, reliable concrete transport and always exactly as you need it:

With KLEIN truck-mounted concrete pumps, you can ensure the continuous transport of concrete on any construction site.
Depending on your requirements, different pump units are available.
Long delivery distances can be easily achieved thanks to the 39 meter long boom.
The base is a 3-axle truck weighing approximately 26,500 kg.
The superstructure is made of high-quality fine-grained structural steel.

The diameter of the pumps line is 125 mm.
The maximum height is 38.60 m.
Horizontal range 34.60 m
The length of the end hose is 4 m
Range of rotation 365°
Maximum hydraulic working pressure 350 bar
Mains voltage 12 V / 24 V
