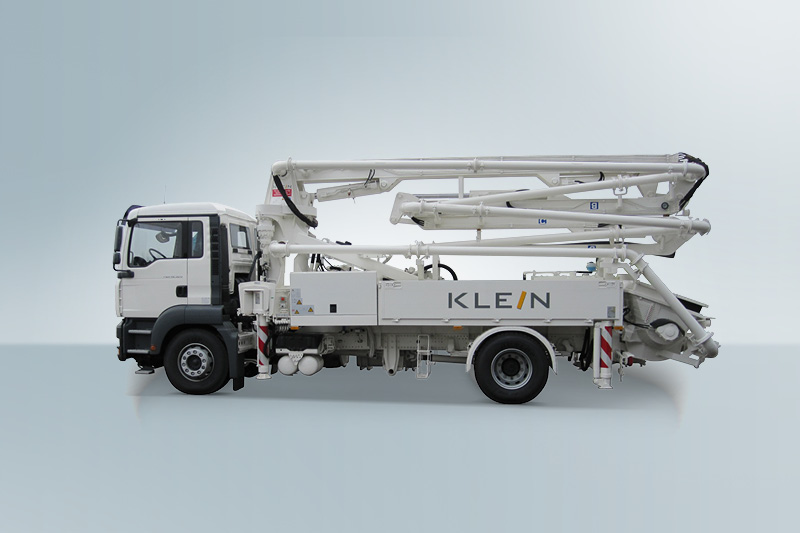

KBZ 24X-4 Truck-mounted concrete pump KLEIN

Efficient, reliable concrete transport and always exactly the way you need it:

With KLEIN truck-mounted concrete pumps, you can ensure uninterrupted concrete transport on any construction site. Depending on your requirements, different pump units are available.
Thanks to the boom length of up to 24 meters, even long transport ranges can be easily achieved. The chassis is a 2-axle truck weighing approximately 18,000 kg.
The superstructure is made of high-quality fine-grained structural steel.

The diameter of the concrete pipe is 125 mm
The maximum height is 23.60 m
The horizontal range is 19.60 m
The length of the final hose is 4 m
The rotation range is 365°
The maximum hydraulic working pressure is 310 bar
Mains voltage 12 V / 24 V
