Stationary, mobile concrete plant E025 BLEND

Manufacturer: BLEND (Italy)
Additional services:
Quality concrete !
Ready for work !
Great price !

Stationary, mobile concrete plant E025 BLEND produces certified concrete, asphalt and cement mixtures

Stationary, mobile concrete plant E025 BLEND (Italy) of continuous mixing unit is 5 m3. The concrete production process is fully automated and controlled by a computer control system. Using the USB interface, 40 different cement mix recipes can be loaded into the system memory.

E025 asphalt concrete plant fully covers the need for concrete for small construction sites or road repairs.

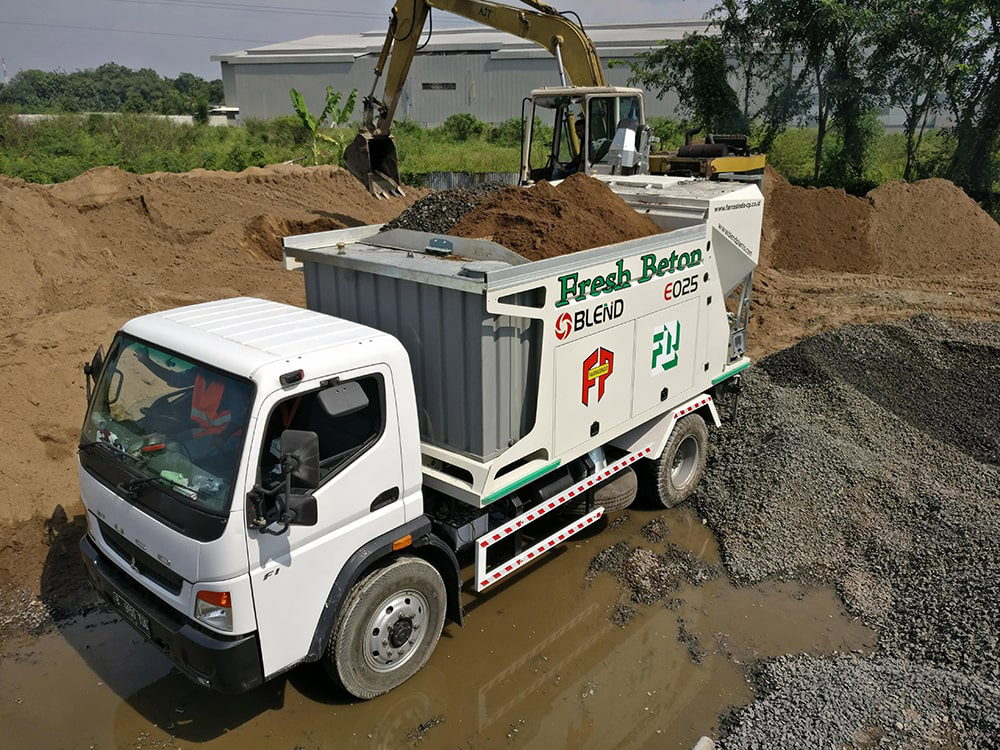

Concrete plant E025 BLEND can be mounted as fixed installation, on a trailer, on the wheelbase of a 4x4 off-road vehicle, on a truck or railway platform.

E025 аsphalt concrete plant is a plant that produces sufficient volume of concrete or asphalt in the model range of BLEND concrete plants (Italy).

Stationary, mobile concrete plant E025 BLEND (Italy) produces:

Concrete, cement mortars, non-ferrous cement, fiber-reinforced concrete, cold asphalt, mortar, soil consolidation, screed.
• Productivity: from 5 to 50 m3/h (mixer with PTO up to 70 m3/h)
• Total volume of fillers: 5 m3
• Cement: 2500 kg

Mobile concrete plant E025 BLEND

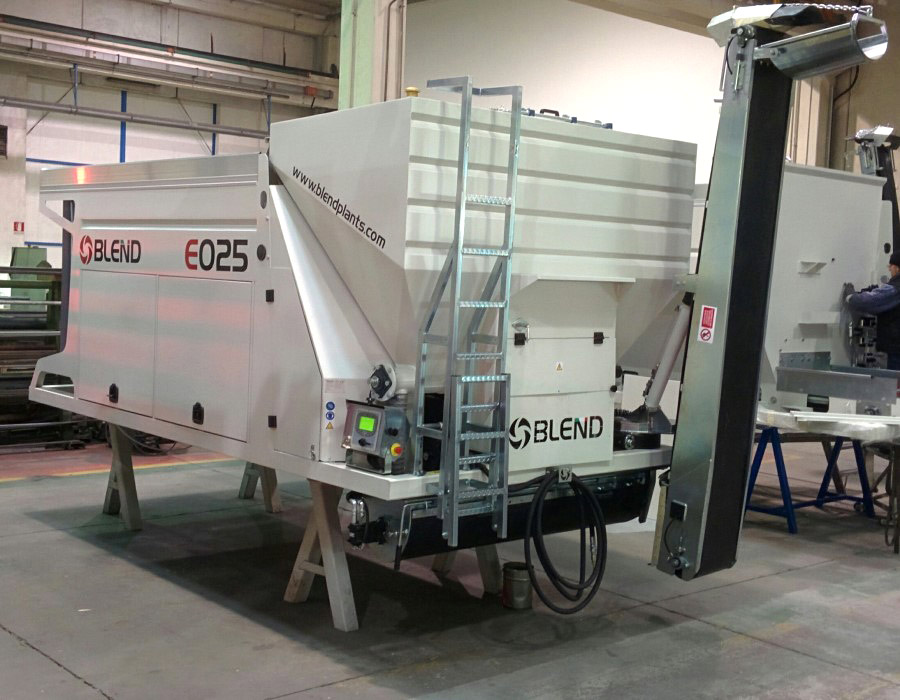

The E025 BLEND concrete plant can be delivered to the customer as a fixed installation.

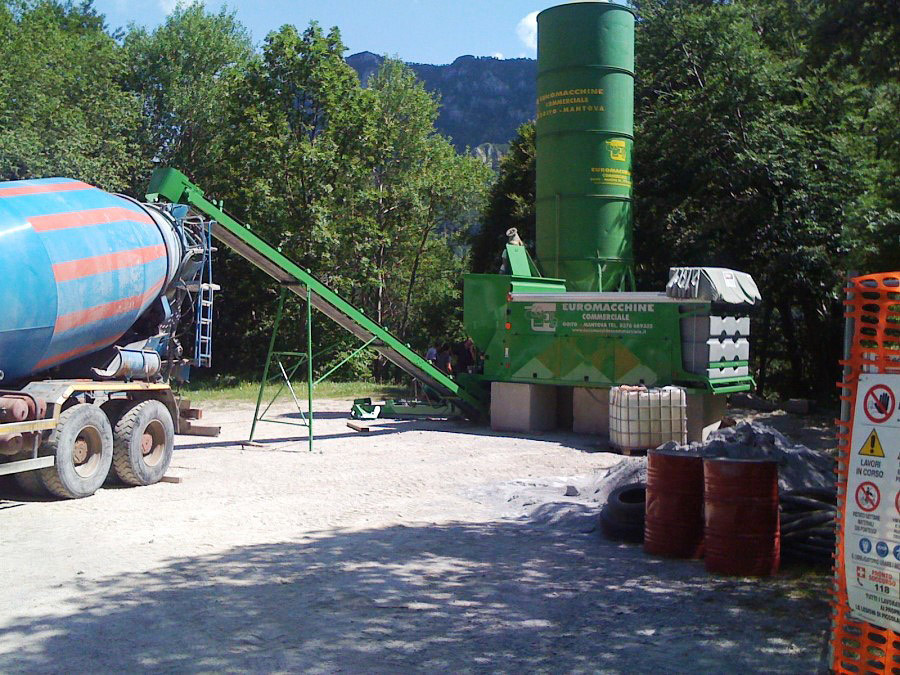

Stationary concrete plant E025 BLEND


The stationary installation of the E025 BLEND asphalt plant is much cheaper than the option mounted on the truck chassis. The performance of the E025 is exactly the same as that of larger models. The stationary version of the plant E025 BLEND is also quite easy to transport from site to site.

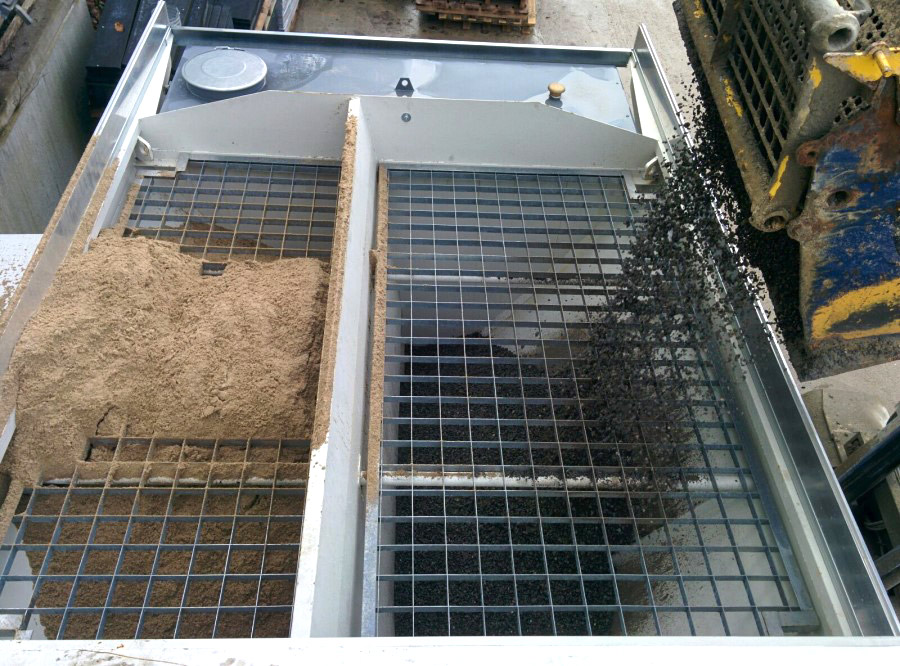

The E025 concrete plant has three independent compartments for aggregates, cement and water, which allows for very rational use of materials. Overproduction or shortage of concrete is simply eliminated with this approach.
Exceptional quality certified concrete is achieved through continuous weighing of materials during production.
All ingredients are connected by a horizontal continuous mixer, which delivers the finished product to the conveyor belt. Concrete production can vary from 5 to 50 m3/h, (with a mixer with PTO up to 70 m3/h).

The mobile concrete plant E025, mounted on a wheelbase, can produce asphalt or concrete while driving, which is especially convenient when repairing roads. And the conveyor belt mechanism accurately and quickly distributes the finished product.
In essence, the installation E025 is a paver.

Characteristics of the E025 BLEND mini concrete plant

Tank for Aggregates 5 m3
Tank for Cement 2500 kg
Tank for Water 1500 l / 3000 l (option)
Tank for Emulsions 300 l (option)
Additional tanks for additives up to 3 pcs. x 42 l (option)
Plant dimensions 4,600 (L) x 1,9300 (W) x 2,250 (H) m
Dimensions cars 6.079 (L) x 2.500 (W) x 3.385 (H) m
Diesel engine auto PERKINS 1104 Series
Maximum power 100 kW (556 hp)
Net weight cars 6900 kg
Maximum gross car weight 18500 kg
Independent engine power (diesel / electro) 37 kW
Productivity:
 - when working from an independent engine
 - when working from a power take-off shaft
    car chassis

≤ 50 m3
≤ 70 m3
Weight with independent engine 2800 kg
Weight without engine 2300 kg

E025 BLEND asphalt concrete plant is managed by one operator. Calibration and continuous weighing of materials are automated. The mixer and conveyor belt are cleaned automatically and with minimal water consumption.

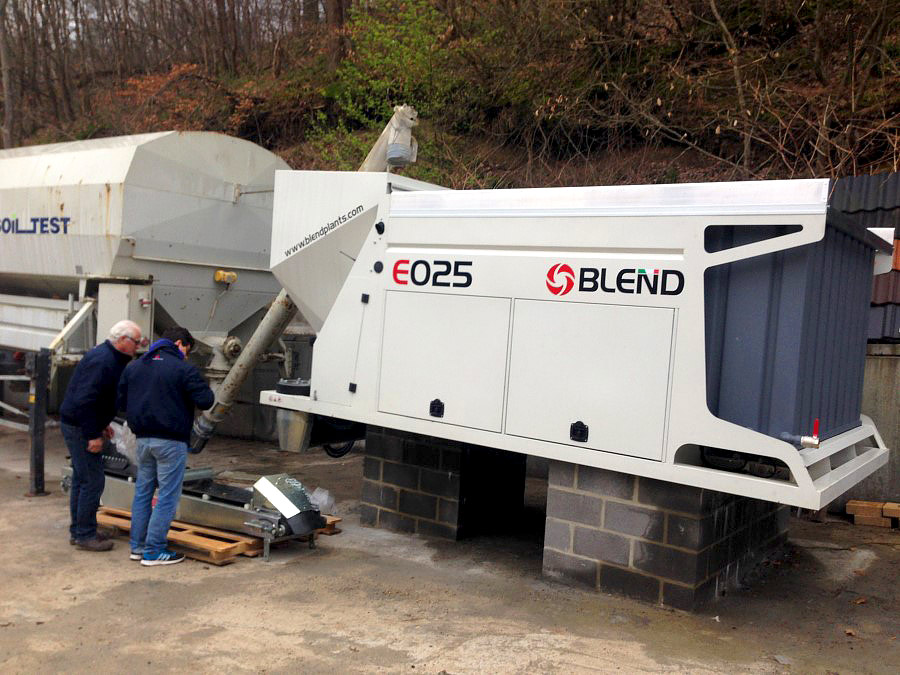

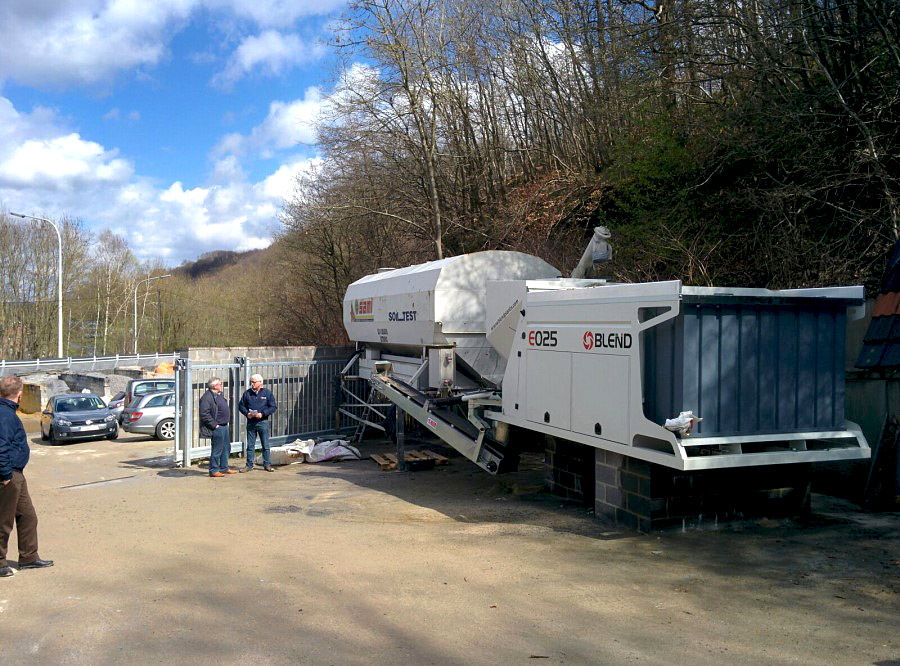

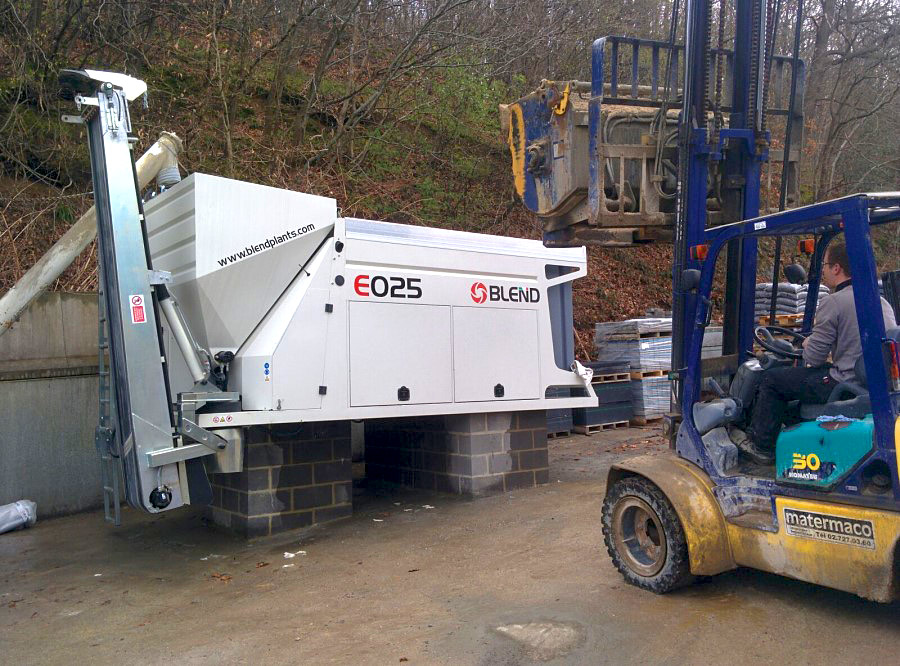

Concrete plant E025 BLEND can be delivered as fixed installation on poles.

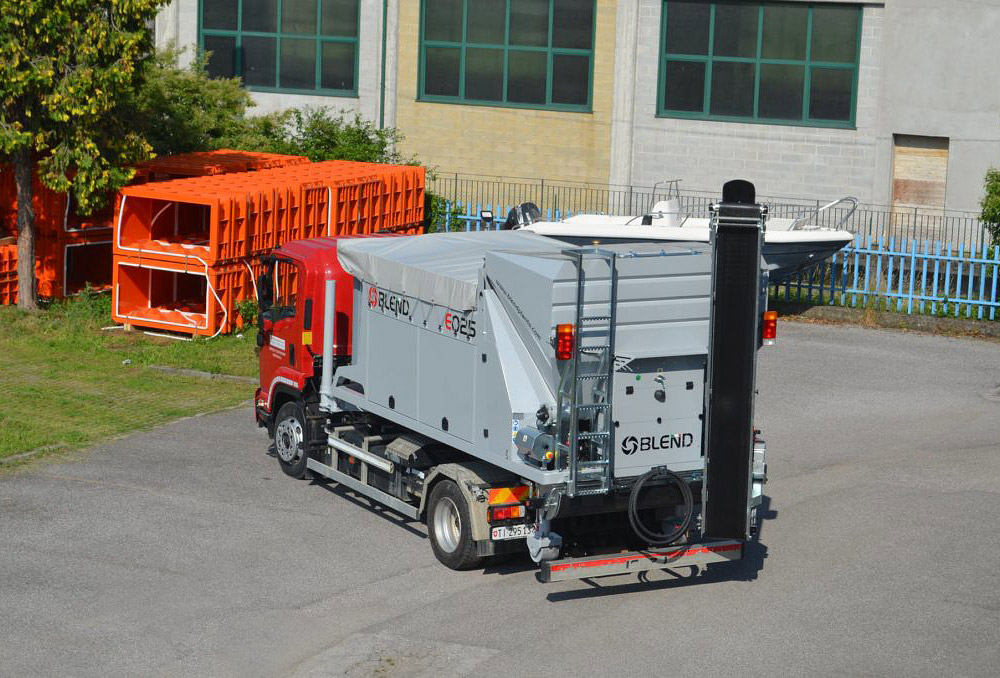

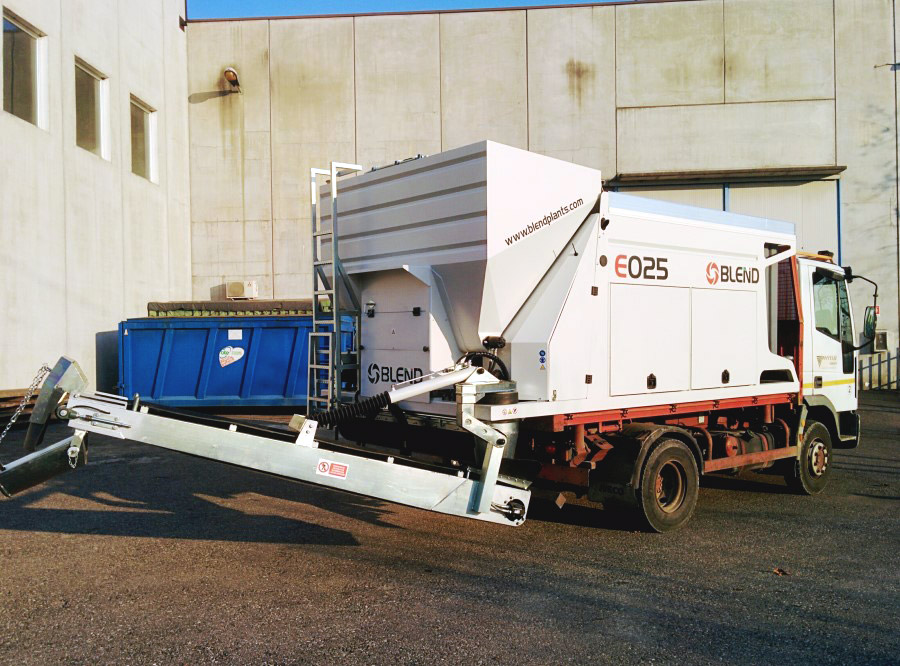

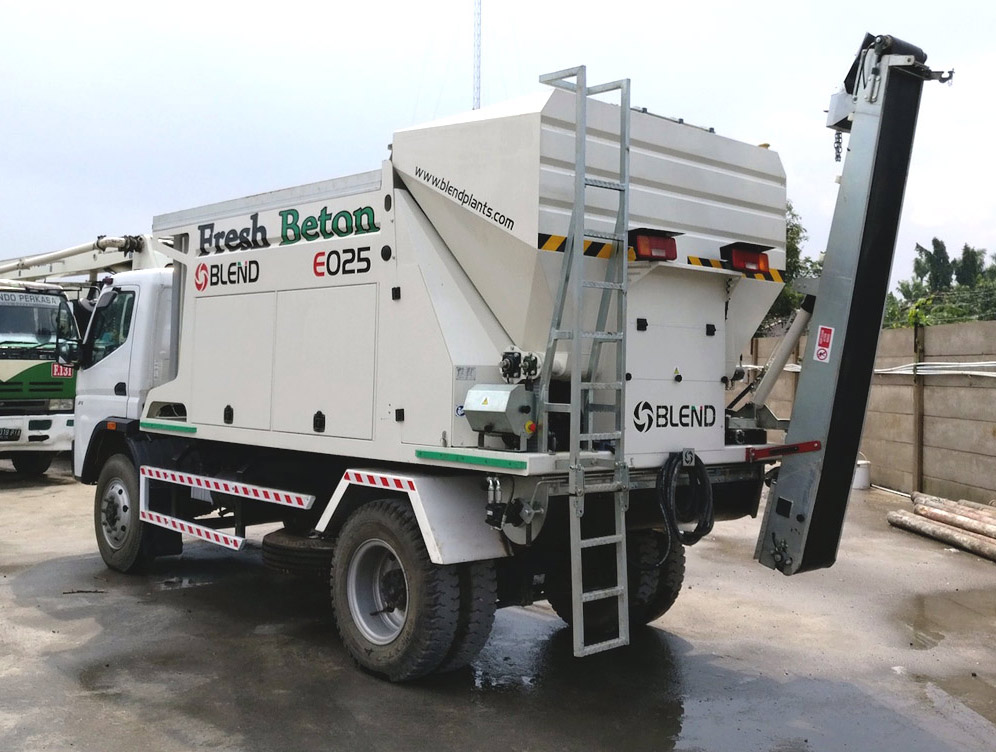

• Can be mounted on a trailer or two-axle truck.

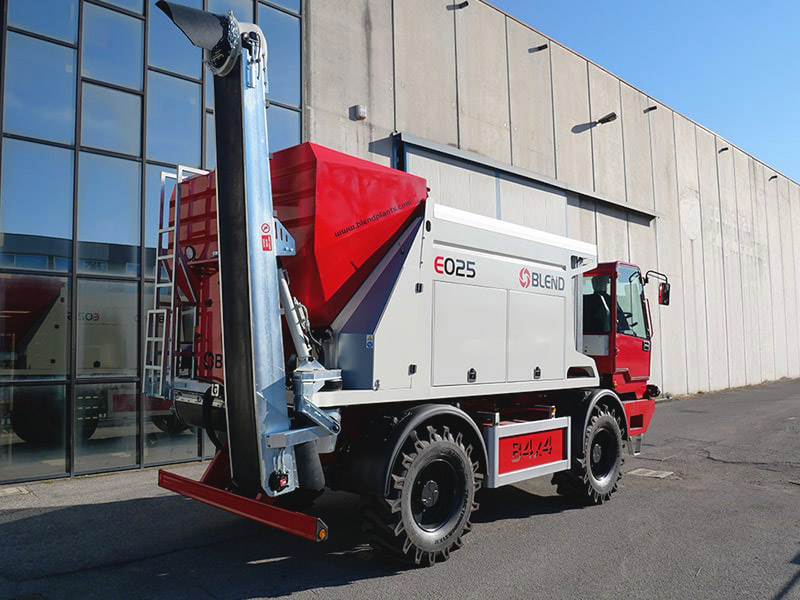

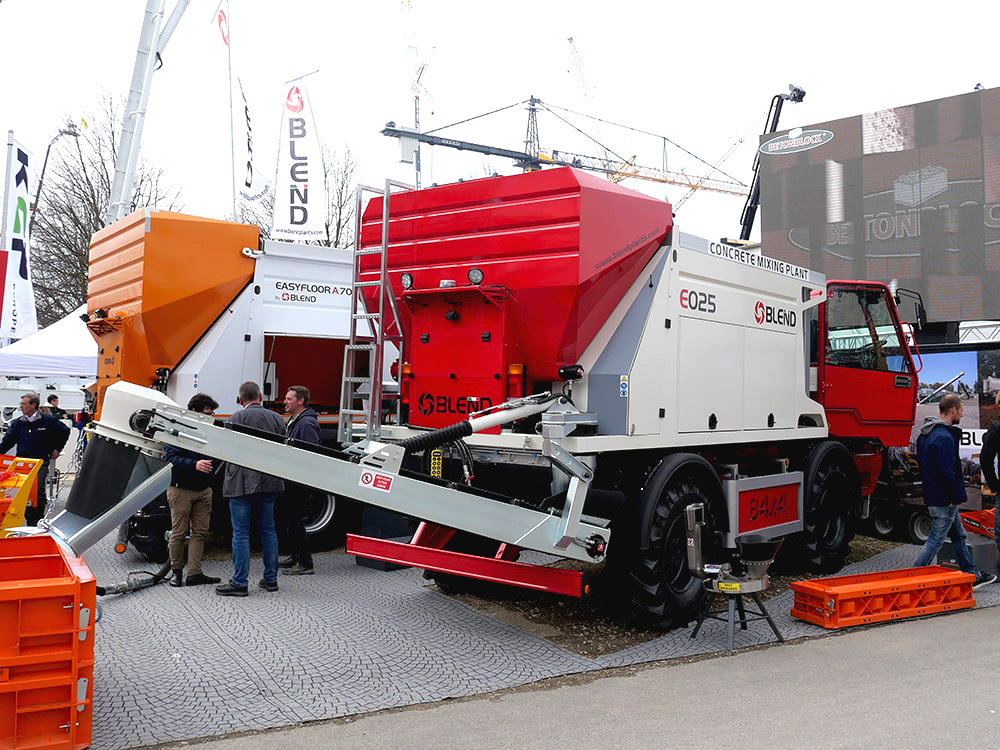

Features of the E025 4x4 BLEND asphalt concrete plant


- The drive of the mixer of the asphalt concrete plant E025, is made in 2 options
Separate engine (diesel or electric) with a power of 37 kW or PTO (power take-off shaft from the main engine). In the case of a separate engine, the performance is 50 m3/h, when using PTO - 70 m3/h.

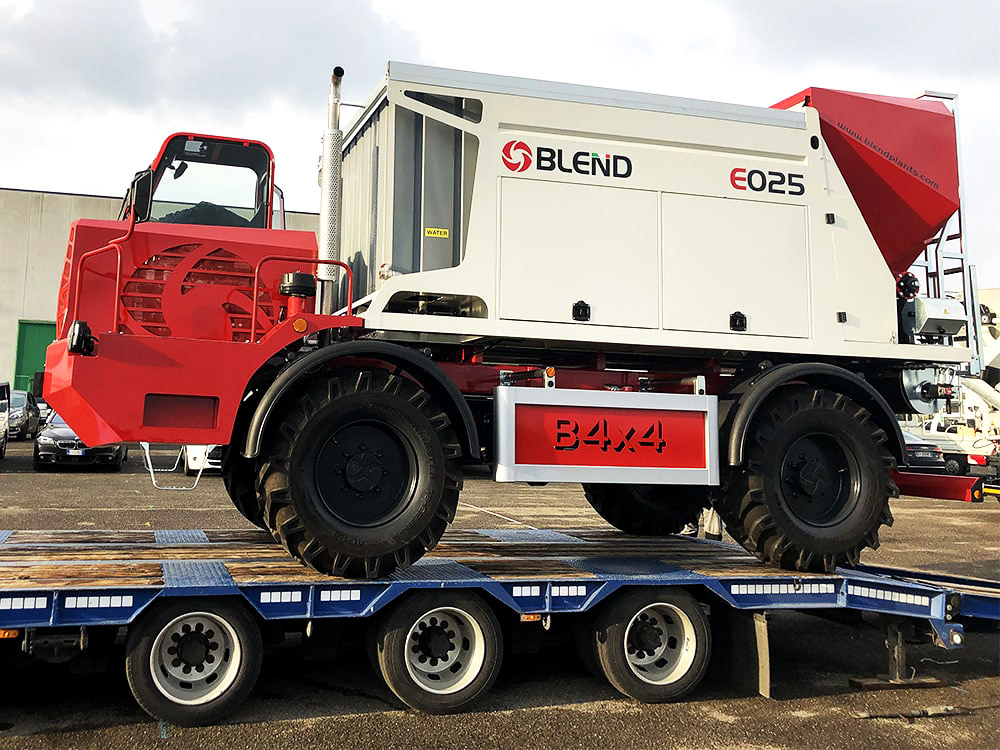

- Installation on a 4x4 chassis - increased cross-country ability

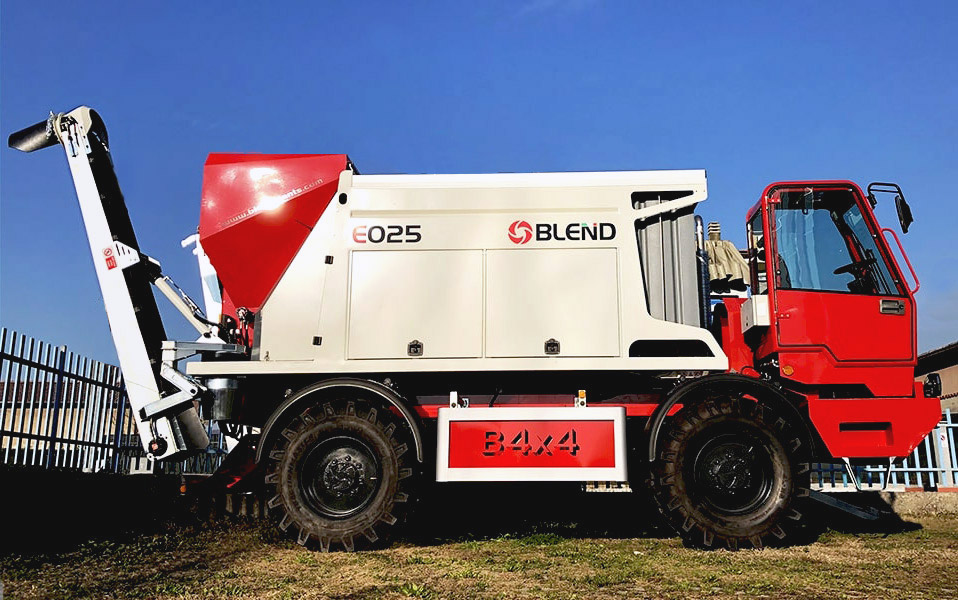

The E025 BLEND asphalt concrete plant, mounted on a 4x4 wheelbase, is an based off-road vehicle paver.
It has increased cross-country ability and small dimensions.
Four-wheel steering provides maneuverability. Hydrostatic «car» transmission and a reverse gear on the steering wheel. Manual gearbox with electro-hydraulic control for «working speed» and «road speed». Steering: for: 2 wheels, for 4 wheels - «crab course».

Applications for the concrete plant E025 BLEND

  • Housing, industrial construction, repair of infrastructure.
  • Pouring foundations, formwork, concrete structures.
  • Roadwork, pavement repair, asphalt repair after laying communications.
  • Construction of roads, laying of asphalt in a cold way, fixing soil.
  • Repair of tunnels, bridges, work in ports.
  • On-site production of asphalt during cold repair of pavement.
  • Regeneration of asphalt, bitumen coatings. Old asphalt, previously crushed, can be used a second time to repair sidewalks, roads and porches with medium traffic intensity. This reduces the cost of transporting materials to the place of repair and waste disposal.
  • Production of concrete blocks. The technology recycling is especially advantageous when pre-crushed concrete waste of old structures is used as a filler.


Economic benefits of asphalt concrete plant E025

E025 asphalt concrete plant allows you to optimize both the properties of concrete and the construction process.
You can get concrete with other characteristics almost immediately - simply by changing the additives and the recipe.
By fully controlling the production of concrete, you can significantly reduce logistics costs.
There are no downtime and delays, there is no dependence on a third-party supplier. Time is saved, and therefore money.
There is no cost overrun of materials - exactly as much concrete as needed is produced. This is economical waste-free concrete production.

Road work with asphalt production in place will greatly optimize the process.
For remote construction sites or hard to reach places - this is the best solution.

You get certified concrete or asphalt at the lowest price, whose quality is electronically controlled.

The E025 BLEND concrete plant allows the recycling of crushed concrete structures instead of natural gravel - this gives economic benefits up to 25% of concrete cost.

Different usage scenarios allow you to quickly pay back concrete plant E025, especially when performing construction work as a contractor.

Multi-function concrete plant E025

The mobility of the E025 concrete plant is the main advantage of this installation when concrete production and unloading are possible almost everywhere.

E025 BLEND asphalt concrete plant is ideal for cold asphalt paving and paving repairs.

Concrete mini-plant runs a computer system that optimizes many processes and allows you to store 40 different recipes for the production of concrete, asphalt, cement mixes.

The maneuverability and small dimensions of the mobile concrete plant E025 BLEND are very popular both for city streets and for rural areas.

Concrete plant E025 BLEND can be used to produce building concrete blocks of any shape and size.

Easy and convenient control E025 4x4 BLEND

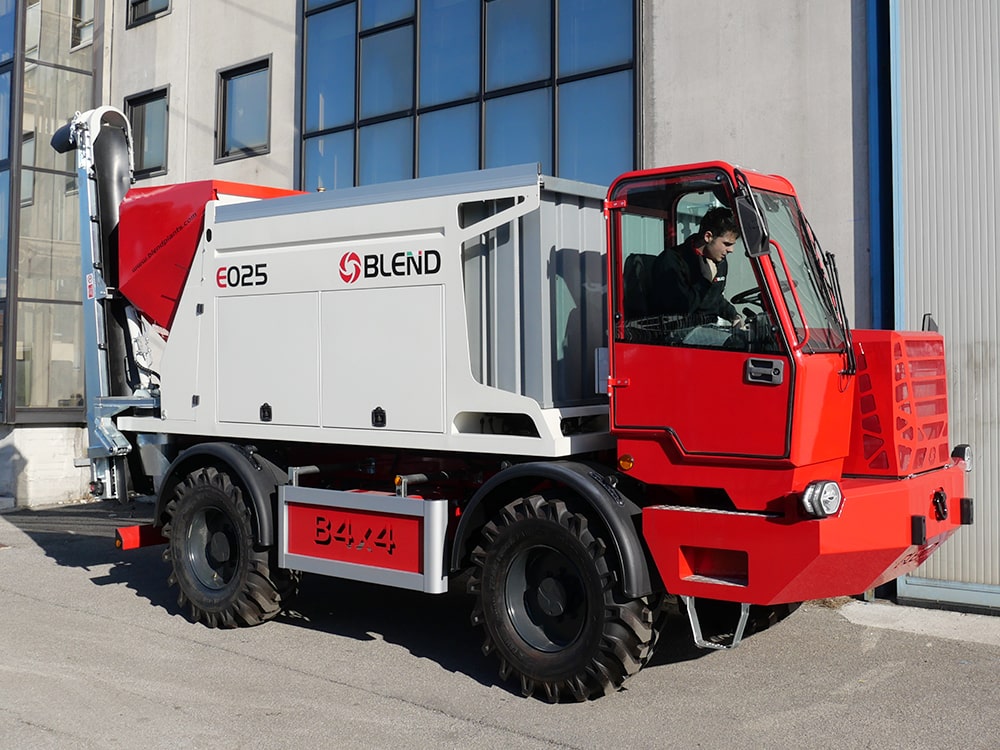

The model based on the off-road vehicle has a driver seat, which rotates 90°. The enclosed cabin has a great comprehensive view.
Anatomical seat with flexible suspension. Driving a car and equipment with an ergonomic arrangement. In the cockpit there is an LCD display with a camera for rear view.

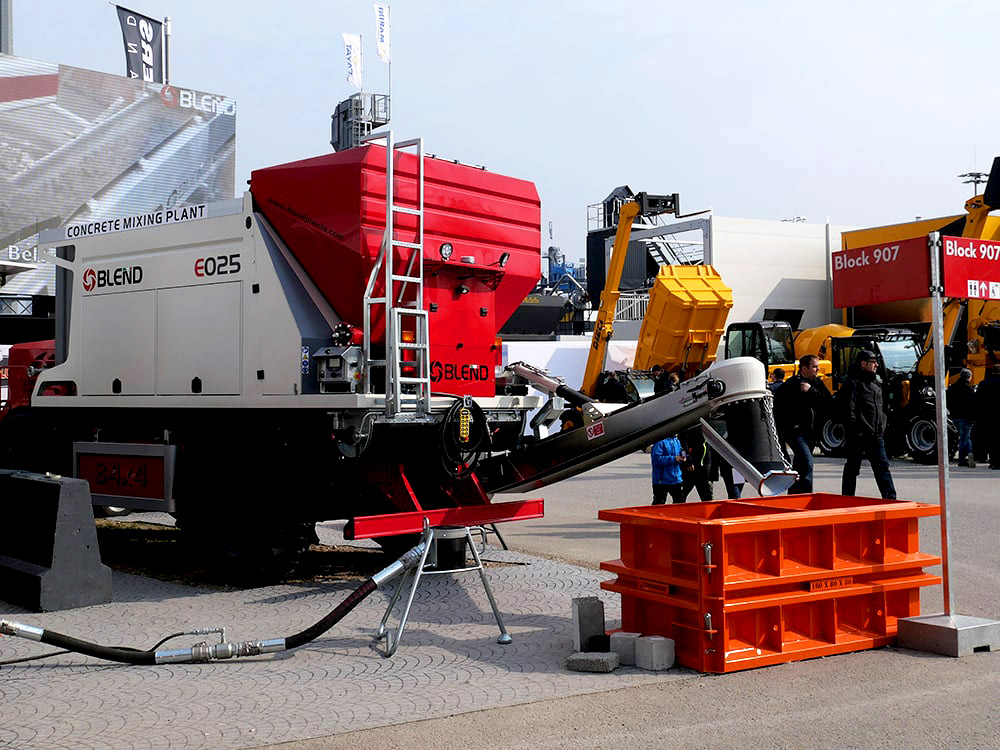

Telescopic conveyor belt significantly expands the working area of concrete supply. The E025 4x4 BLEND paver accurately and metered discharges material.
Automatic washing and cleaning of the mixer, conveyor belt, occurs with a minimum flow of water.

Concrete plant E025 BLEND both stationary and mobile - produces certified concrete, asphalt, mortar. Ideal for construction and road works. Having a modest size and mounted on a wheelbase, an off-road vehicle can work in hard-to-reach places.

Multiple use cases for E025 BLEND asphalt concrete plant make it possible to recoup it quickly enough, producing the product at the lowest price.

You can buy a stationary, mobile concrete plant E025 BLEND or get technical advice by contacting «Interbudtechnica».
