Spider 27.14

Working height: 27.01 m
Side outreach: 15.11 m
Engine:
Diesel engine + AC electric motor
or
AC electric motor + DC electric motor
or
Diesel engine + DC electric motor

The most compact and the easiest to use

• Only 88 cm (35”) wide to drive through a single door
• Auto-stabilization and auto-stow
• Quick movements, even in multifunction
• Double scissor mechanism offers excellent clearance for travel over obstacles
• Simple maintenance
• Simple and intuitive on-board fittings
• In-basket air, water and 220 V power outlets
• No externally-mounted hoses
• Available in HYBRID version with lithium-ion batteries
• Fully protected with impact resistant metal covers
• Spacious basket with 230Kg capacity (room for 2)
• Option of lifting winch interchangeable with the basket

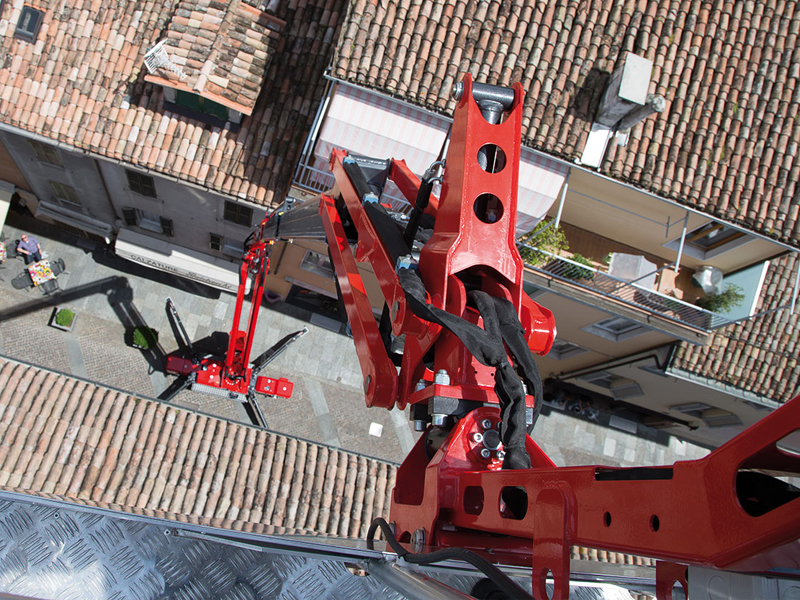

The Spider 27.14 is an articulated tracked lift equipped with double scissor mechanism, with 10-metre up-and-over clearance. Weighing just 5000 kg, the Platform Basket Spider 27.14 can reach a working height of 27 metres. With one operator working in the basket (136 kg), the Spider 27.14 has an outreach of up to 14.4 metres; with 230 kg in the basket, the maximum outreach is 12.7 metres. In addition, it can be ordered with interchangeable winch, offered as an option, to safely lift loads of up to 250 kg.

With a few operations and in just a couple of minutes, it is possible to turn the articulated platform into a hoist. The platform is extremely compact and in the stowed position, it only needs an 88-cm-wide space, which means it can pass through a standard domestic door. Stabilization is all-automatic and the side outreach is also automatically handled over the 360-degree range of motion, based on the load in the basket and the stabilization mode. The Spider 27.14 is the platform designed to meet the market demand for compact and high-performing platforms.

The world we live in today demands spider lifts that can work in multiple conditions. This is why, to meet customers’ specific needs, we optimised a series of accessories. In addition, our technical department is available to study and develop other accessories and customised options according to the customer’s requirements and expectations.
