Crawler concrete pumps KLEIN

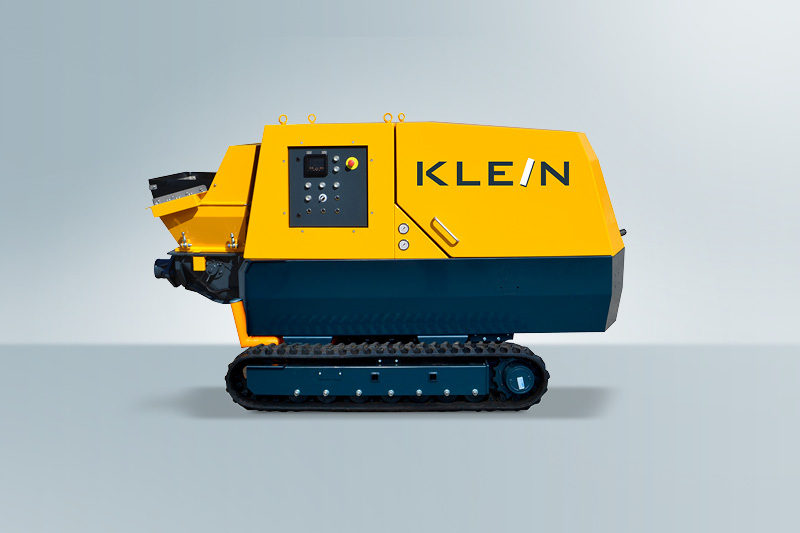

KTP 150 Series

Crawler concrete pumps of the 150 series are characterized by high compactness and high reliability. Thanks to the powerful tracked chassis, the machines are very mobile even on difficult soil. In this series, pumps of three different performance categories are available (from 1 to 21 m³/h). You can choose between diesel drive or emission-free electric drive.

The maximum theoretical capacity is 0-21 m³/h
The maximum theoretical pressure of concrete is 80 bar
The volume of the concrete bunker is 300 l

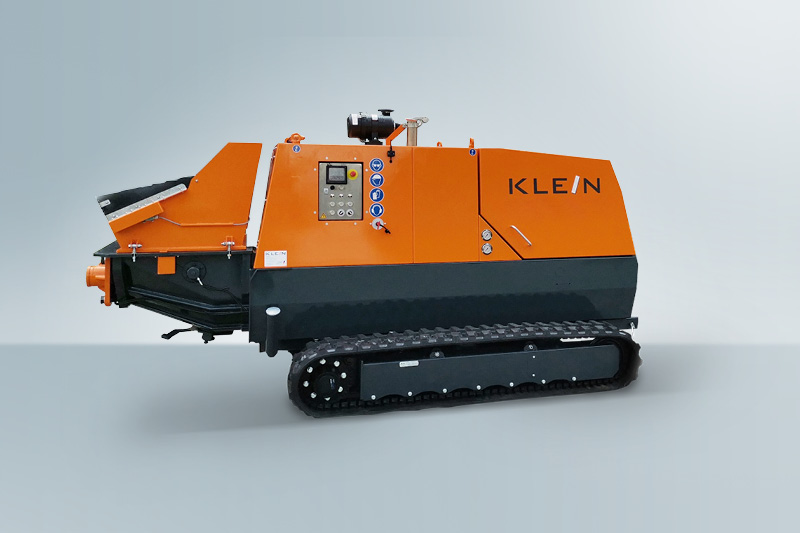

KTP 180 Series

Thanks to the high-quality processing of high-quality materials, the tracked concrete pumps of the 180 series are extremely durable. The powerful twin-piston pump reliably transports large quantities of concrete and other pumpable materials with a particle size of up to 32 mm, even over long distances to the respective destination. Crawler concrete pumps are particularly suitable for use in conjunction with drilling equipment.

The maximum theoretical capacity is 0-61 m³/h
The maximum theoretical pressure of concrete is 100 bar
The volume of the concrete bunker is 400 l

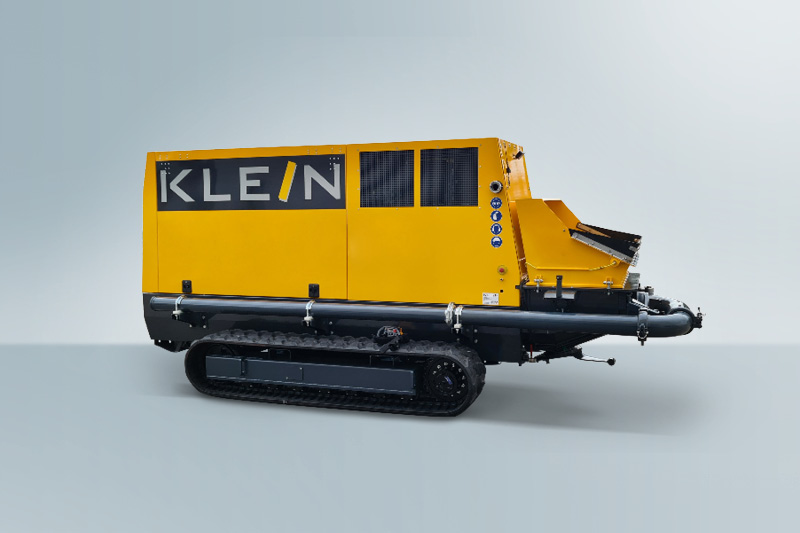

KTP 220 Series

The 220 Series Crawler Concrete Pumps are used whenever performance is required. With flow rates from 65 to a maximum of 171 m³/h, the pumps are ideal for filling large wells in the context of construction and civil engineering projects. The powerful crawler chassis ensures the mobility of the pump even on difficult soils. Pumpable materials with a grain size of up to 32 mm can be transported. You can choose between a diesel engine or an emission-free electric motor.

The maximum theoretical capacity is 65-145 m³/h
The maximum theoretical pressure of concrete is 64-130 bar
The volume of the concrete bunker is 500-800 liters
